Product Details:
Door Type:
No. Sheets:
Around:
Leaf:
The leaf is manufactured from a residential or industrial sandwich panel (depending on the variants) with a thickness of 40 mm. It is made using pre-lacquered sheet metal on galvanized steel, following the EN-10142 standard. The interior of the panel is composed of expanded polyurethane with an average density of 40 kg/m³, free from CFC and HCFC. Two panel formats are employed, one with a height of 500 mm and another with 610 mm.

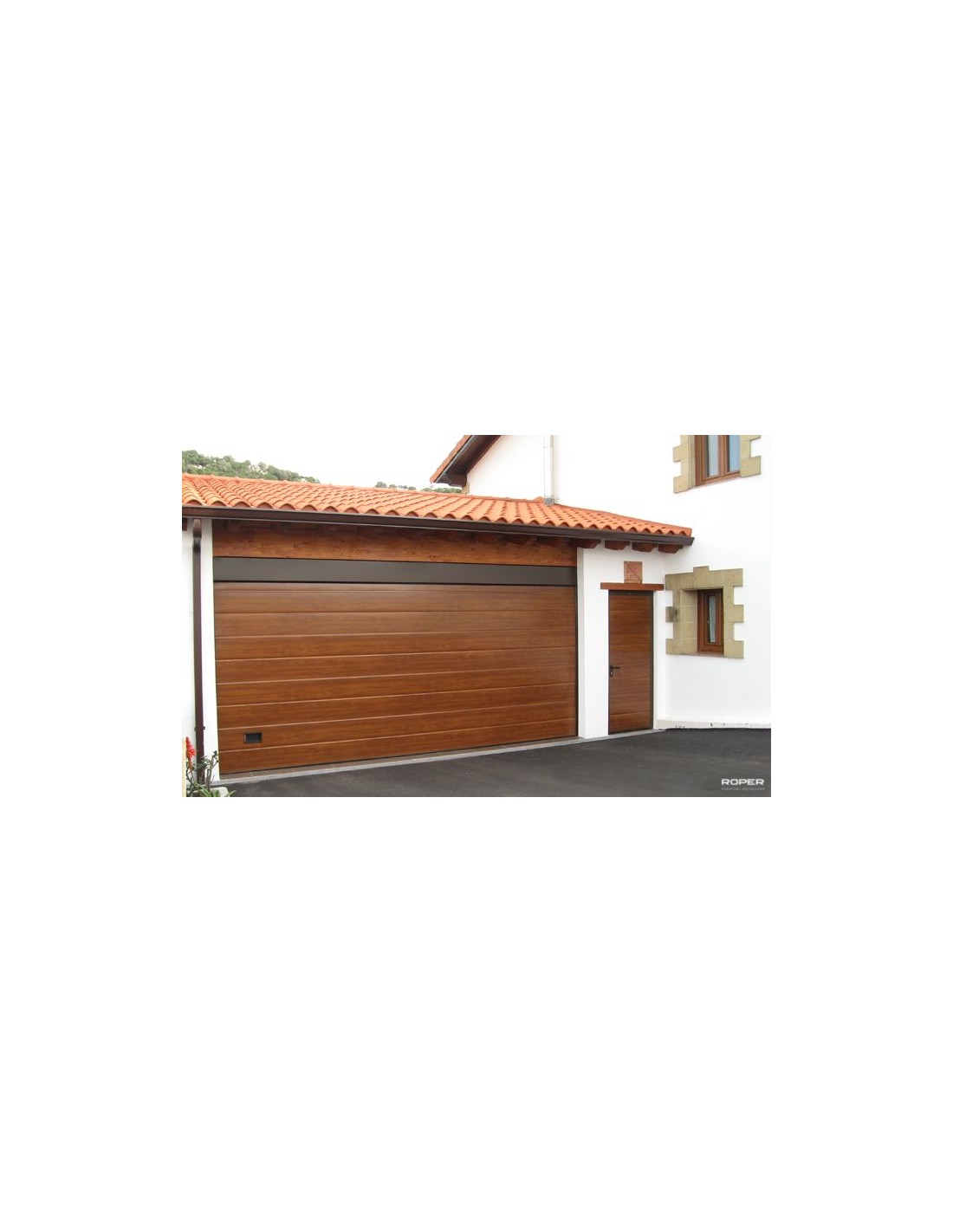

The exterior face of the panels is available in pre-lacquered sheet metal in the following colors: RAL 9010, RAL 8014, RAL 9006, RAL 6005, RAL 7024, RAL 3000, and RAL 5010. It is also available in light oak and dark oak wood imitation. All other colors will be provided painted according to the classic RAL color chart with two-component paint (base/catalyst).
The interior of the panel will be provided in white color.
Transmission: The shaft, springs, and lintel are fully assembled to facilitate the door installation on-site. The springs are made of steel EN 10270-1, SH class, and are phosphate-coated. The springs are accompanied by anti-breakage spring systems to prevent the door from falling in case of spring breakage.
Lintel and Guides: The lintel is manufactured from galvanized sheet metal according to the EN-10142 standard. If the vertical guides are made of sheet metal, they are manufactured from galvanized sheet steel according to the EN-10142 standard. The finish of the lintel and guides can be galvanized sheet metal or pre-lacquered or painted sheet metal (according to the chosen color for the door). If the vertical guides are made of tubular steel with angles, the finish can be galvanized or painted. The horizontal and vertical guides are made of galvanized sheet steel according to the EN-10142 standard. The assembly can be fully visible without the need for a pre-frame. The edges of the guide are rounded to prevent cuts.
Cables: Depending on the dimensions of the leaf, cables with diameters of 3 mm, 4 mm, and 5 mm are used. All cables have a 6×19+1 composition and comply with DIN 3060 standards.
Delivery: The door is delivered pre-assembled at 60%, packed with plastic, and two sheets of lower and front DM (medium-density fiberboard), in either one or three packages:
One package: guides, lintel with transmission, panels, and accessories. Three packages: guides and lintel with transmission, panels, accessories.
The quality of this door is supported by tests conducted in accredited laboratories, following the EN 13241-1 product standard, and it is marked for both manual and automatic versions. The components used in the door and its finish will depend on the dimensions of the door, its variant, and the opening available at the site. Possible changes may also occur to improve production processes.
Technical Data Sheet – Standard Lintel Door with a leaf made of a sandwich panel, vertical guides made of sheet metal or tube, and a lintel made of sheet metal or tubes with plates, mechanically operated by torsion springs fixed to the lintel/tube, which rotate two drums where the cable is wound and fixed to the bottom of the leaf. This leaf moves, using rollers, along metal guides until it becomes horizontal. Optionally, the guides can be inclined to adapt to the slope of the ceiling as much as possible. The manual operation of the door can be replaced by the installation of an electric system.
The perimeter of the leaf is sealed by placing rubber seals, leaving the interior semi-sealed.
Leaf:
The leaf is manufactured using residential or industrial sandwich panels (depending on variants) with a thickness of 40 mm. The panel is made of pre-lacquered sheet metal on galvanized steel, following the EN-10142 standard. The interior of the panel is composed of expanded polyurethane with an average density of 40 kg/m³, free from CFC and HCFC. Two panel formats are used, one with a height of 500 mm and another with a height of 610 mm.
Technical Data Sheet
Technical Sheet – Reduced lintel
Door with leaf made of sandwich panel, vertical guides made of sheet metal or tube, and lintel made of sheet metal, mechanically operated by torsion spring/s fixed to the lintel, rotating two drums where the cable is wound and fixed to the bottom of the leaf. This leaf runs, through pulleys, along metal guides until it is horizontal. Optionally, the guides can be tilted to adapt to the slope of the ceiling as much as possible. Manual operation of the door can be replaced by the installation of an electrical system.
The perimeter of the leaf is sealed by placing rubber gaskets, leaving the interior “semi-sealed.”
Leaf: The leaf is made of residential or industrial sandwich panel (depending on the variant) with a thickness of 40 mm. It is manufactured with pre-lacquered sheet metal on galvanized steel, following EN-10142 standards. The interior of the panel consists of expanded polyurethane with an average density of 40 kg/m³, free from CFC and HCFC. Two panel formats are used, one with a height of 500 mm and another with 610 mm.
Leaf:
The leaf is manufactured from a residential or industrial sandwich panel (depending on the variants) with a thickness of 40 mm. It is made using pre-lacquered sheet metal on galvanized steel, following the EN-10142 standard. The interior of the panel is composed of expanded polyurethane with an average density of 40 kg/m³, free from CFC and HCFC. Two panel formats are employed, one with a height of 500 mm and another with 610 mm.
The exterior face of the panels is available in pre-lacquered sheet metal in the following colors: RAL 9010, RAL 8014, RAL 9006, RAL 6005, RAL 7024, RAL 3000, and RAL 5010. It is also available in light oak and dark oak wood imitation. All other colors will be provided painted according to the classic RAL color chart with two-component paint (base/catalyst).
The interior of the panel will be provided in white color.
Transmission: The shaft, springs, and lintel are fully assembled to facilitate the door installation on-site. The springs are made of steel EN 10270-1, SH class, and are phosphate-coated. The springs are accompanied by anti-breakage spring systems to prevent the door from falling in case of spring breakage.
Lintel and Guides: The lintel is manufactured from galvanized sheet metal according to the EN-10142 standard. If the vertical guides are made of sheet metal, they are manufactured from galvanized sheet steel according to the EN-10142 standard. The finish of the lintel and guides can be galvanized sheet metal or pre-lacquered or painted sheet metal (according to the chosen color for the door). If the vertical guides are made of tubular steel with angles, the finish can be galvanized or painted. The horizontal and vertical guides are made of galvanized sheet steel according to the EN-10142 standard. The assembly can be fully visible without the need for a pre-frame. The edges of the guide are rounded to prevent cuts.
Cables: Depending on the dimensions of the leaf, cables with diameters of 3 mm, 4 mm, and 5 mm are used. All cables have a 6×19+1 composition and comply with DIN 3060 standards.
Delivery: The door is delivered pre-assembled at 60%, packed with plastic, and two sheets of lower and front DM (medium-density fiberboard), in either one or three packages:
One package: guides, lintel with transmission, panels, and accessories. Three packages: guides and lintel with transmission, panels, accessories.
The quality of this door is supported by tests conducted in accredited laboratories, following the EN 13241-1 product standard, and it is marked for both manual and automatic versions. The components used in the door and its finish will depend on the dimensions of the door, its variant, and the opening available at the site. Possible changes may also occur to improve production processes.
Technical Data Sheet – Standard Lintel Door with a leaf made of a sandwich panel, vertical guides made of sheet metal or tube, and a lintel made of sheet metal or tubes with plates, mechanically operated by torsion springs fixed to the lintel/tube, which rotate two drums where the cable is wound and fixed to the bottom of the leaf. This leaf moves, using rollers, along metal guides until it becomes horizontal. Optionally, the guides can be inclined to adapt to the slope of the ceiling as much as possible. The manual operation of the door can be replaced by the installation of an electric system.
The perimeter of the leaf is sealed by placing rubber seals, leaving the interior semi-sealed.
Leaf:
The leaf is manufactured using residential or industrial sandwich panels (depending on variants) with a thickness of 40 mm. The panel is made of pre-lacquered sheet metal on galvanized steel, following the EN-10142 standard. The interior of the panel is composed of expanded polyurethane with an average density of 40 kg/m³, free from CFC and HCFC. Two panel formats are used, one with a height of 500 mm and another with a height of 610 mm.
The exterior face of the panels is available in pre-lacquered sheet metal in the following colors: RAL 9010, RAL 8014, RAL 9006, RAL 6005, RAL 7024, RAL 3000, and RAL 5010. It’s also available in light oak and dark oak wood imitation. All other colors will be supplied painted according to the classic RAL color chart using a two-component paint (base/catalyst). The interior of the panel will be provided in white.
For doors with a surface area of 16 m² or larger, cable breakage devices will be installed to prevent the door from falling in case one of the cables breaks.
Transmission: The axle, springs, and lintel/tube come fully assembled to facilitate the installation of the door on-site. Springs are made of EN 10270-1 steel, class SH, and are phosphated. The springs are equipped with anti-breakage systems to prevent the door from falling in case a spring breaks.
Lintel and Guides: If the vertical guides or lintel are made of sheet metal, they are manufactured using galvanized steel according to the EN-10142 standard. In this case, the finish of the guides and lintel can be galvanized sheet metal or pre-lacquered/painted sheet metal (depending on the chosen door color).
If the vertical guides are made of tubing, they are manufactured using galvanized tubing. In this case, the finish can be galvanized or painted.
If the lintel is tubing, a closing tube will be supplied to be placed on the top of the leaf, and a galvanized tube or UPN (depending on the measurements) will be provided to secure the plates with the transmission. The closing tube will have the same finish as the vertical guides. The horizontal and vertical guides are made of galvanized sheet metal according to the EN-10142 standard. The assembly can remain fully visible without the need for a pre-frame. The edges of the guides are rounded to prevent cuts.
Cables: Depending on the dimensions of the leaf, cables with diameters of 3 mm, 4 mm, and 5 mm are used. All cables have a 6×19+1 composition and comply with the DIN 3060 standard.
Delivery: The door is delivered pre-assembled at 60%, packaged with plastic and two lower and front DM sheets, in either one or three packages:
One package: guides, lintel with transmission, panels, and accessories. Three packages: guides and lintel with transmission, panels, accessories.
The quality of this door is supported by tests conducted in accredited laboratories, in accordance with the product standard EN 13241-1, and it is marked for both manual and automatic versions. The choice of door components and finish will depend on the dimensions of the door, its variant, and the opening available at the site. Possible changes may also occur to improve production processes.
